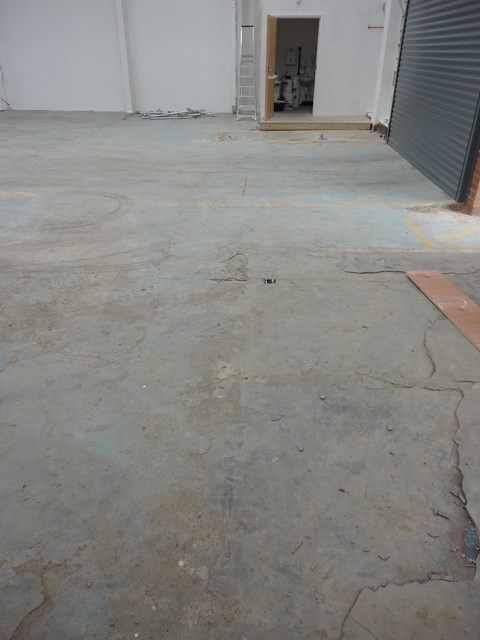

The concrete before

Repairs

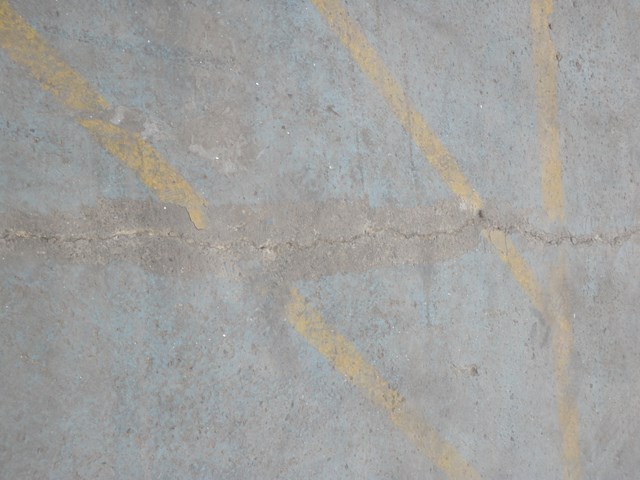

Cracks in the concrete

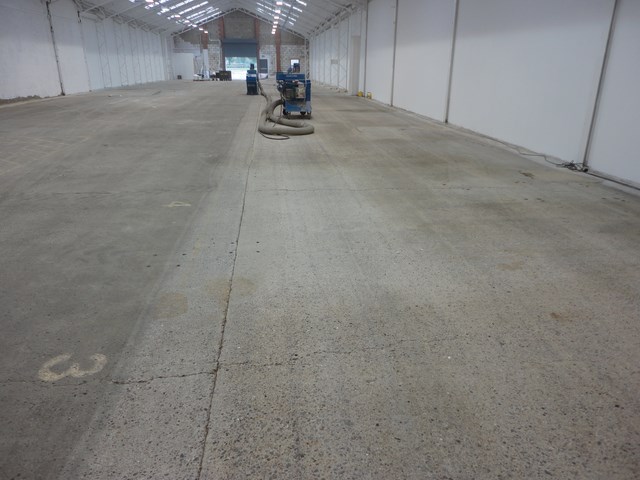

Shot-blasting underway

The industrial smoothing screed

The fine slip resistant finish

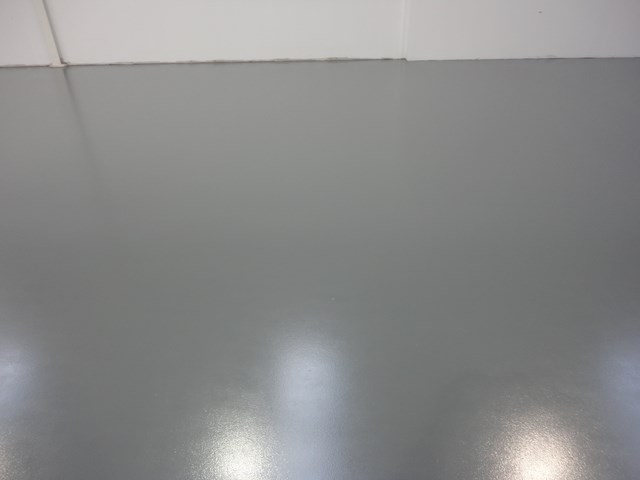

The finished floor

The finished floor

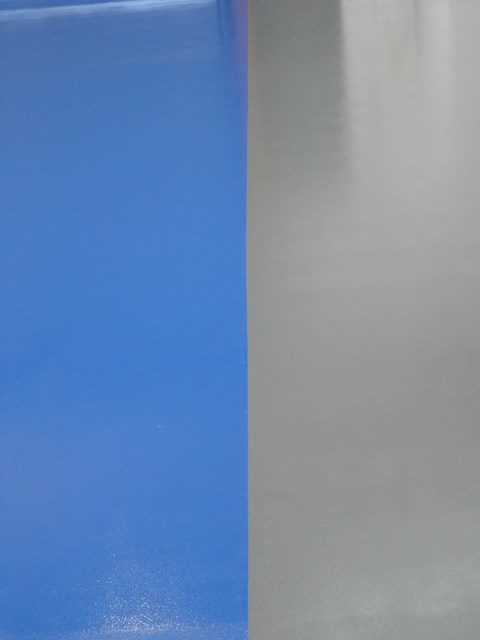

Slate Grey and French Blue

The finished industrial floor layout
Previous
Next
1000 sq m renovated in 10 Days.
The concrete was undulating and pitted with exposed aggregate throughout. There were numerous holes to fill.
The preparation and installation were project managed entirely by Elgood.
Parkserve Required an even wearing floor to meet the needs of their incoming tenant.
A floor that can be cleaned routinely with a scrubber dryer.
Breakers were used to remove patches of latex screed with vacuum contained shot-blasting and diamond grinding to prepare the concrete.
We specified a High Strength Industrial Smoothing Screed laid to an average thickness of approx 7 mm to resurface the floor finished with our Britdura 750 High-build Solvent Free Epoxy Floor Coating in Slate Grey.
The Floor thickness of approximately 8 mm with a built in very fine slip resistant finish. Parkserve selected Slate Grey throughout with French Blue and Cherry Red to highlight Goods In / Out and a Fire Lane respectively.
Installation Programme: 10 days.
Facts & Figures
- Completion date: September / October 2015
- Location: Sandwich, Kent
- Size of floor: 1000 sq m
- Total thickness: Approximately 8 mm
- Finish: Built in very fine slip resistant finish.
- Colour / Layout: Slate Grey throughout with French Blue and Cherry Red to highlight Goods In / Out and a Fire Lane respectively.
- Existing floors: The concrete was undulating and pitted with exposed aggregate throughout. There were numerous holes to fill.
Preparation
Breakers to remove patches of latex screed.
Vacuum contained shot-blasting and diamond grinding to prepare the concrete.
Parkserve Required
An even wearing floor to meet the needs of their incoming tenant.
A floor that can be cleaned routinely with a scrubber dryer.
Parkserve Selected
High Strength Industrial Smoothing Screed laid to an average thickness of approx 7 mm to resurface the floor.
Our Britdura 750 High-build Solvent Free Epoxy Floor Coating in Slate Grey.
The Elgood Service
The preparation and installation were project managed entirely by Elgood.
Managed & Installed By
Elgood Industrial Flooring’s in house full time employed trained team.
